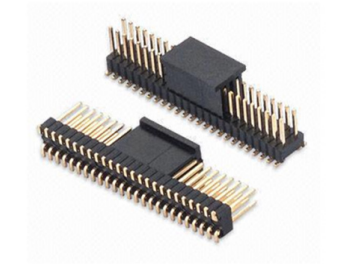

?G802編AgilBrick?1.27mm板對板金屬接頭AMPHENOL

發布消息時期：2025-01-21 15:52:36     訪問 ：555

AMPHENOL的G802系列AgilBrick?1.27mm板對板接頭提供一種經濟高效的解決方案，具有靈活性的結構和1-4A的額定電流。G802系列AgilBrick?1.27mm板對板接頭也可以定制，以滿足不同客戶需求。支持定制的管腳長度，包括接觸管腳和焊尾，這使其成為多種應用和特殊設計的最佳選擇。G802系列AgilBrick?1.27mm板對板接頭還使從不同板安裝配置中進行選擇變得更簡單，因為它支持多種安裝選擇，包括垂直DIP、直角DIP、垂直SMT和直角SMT。

協調性性且極易調整引腳段長度，以提供不相同APP消費需求。

人工成本效果高

最主要的用來線對板和板對板應用領域

兼容PIP操作流程

有好處于插進管腳，在PCB上兼具較高的細胞遷移力

特征英文

可以制定的引腳大小，屬于接處管腳和焊尾

各種類型配置選定，包擴維持線集中角、銳角集中角、維持線SMT和夾角SMT

使用的高溫度度塑料材質

磁帶和秘藥裝封選用

節構靈催化活性性

先選電鍍、15u“鍍銀、30u”燙金或鍍錫

符合RoHS標淮且無鹵化物

能提供較長的針清潔

好處

可用來多種不同軟件應用和特種的設計方案

極為有助進的選擇板互相配合配值

此回流兼容

兼容PIP標準流程

支技私人定制且資金有效率

的提升穩定系統可靠性和的價格靈幾丁質酶高性

考慮室內環境、安會與更健康使用需求

以保證安全的信得過的接觸到

西安市立維創展科學不足集團公司權限微商代理AMPHENOL連入器好產品。如需購入AMPHENOL拼接器，請關系他們！！！


PART NUMBER

DESCRIPTION

G802030220229EU

Board mount - Header Plug - Pin Header 1.27mm Pitch x2.54mm Row, Right Angle,2x15Pin,Gold Flash,NY4T,Removed#29Pos

G802B3623411HR

Board mount - Header Plug - Pin Header 1.27mm Pitch For USB3,Right Angle,2x18Pin,Matte Tin,LCP,Removed#36Pos,2.7mm*4.5mm*1.7mm

G802M006315YAEU

Board mount - Header Plug - Pin Header 1.27mm*1.27mm Pitch Vertical,SMT,2x3Pin,Gold Flash,NY6T,4.0mm*1.0mm_5.5mm,W/CAP

G802M008312YEU

Board mount - Header Plug - Pin Header 1.27mm Pitch*1.27mm Row,Vertical SMT,2x4Pin,Gold Flash,LCP,3.05mm*2.5mm_5.84mm,Color-Black,Tube

G802M008315YAEU

Board mount - Header Plug - Pin Header 1.27mm*1.27mm Pitch Vertical,SMT,2x4Pin,Gold Flash,NY6T,4.0mm*1.0mm_5.5mm,W/CAP

G802M008315YAHR

Board mount - Header Plug - Pin Header 1.27mm*1.27mm Pitch Vertical,SMT,2x4Pin,Gold Flash,NY6T,4.0mm*1.0mm_5.5mm,W/CAP

G802M010322YEU

Board mount - Header Plug - Pin Header 1.27mm Pitch Vertical,SMT,2x5Pin,15μin Gold,LCP,3.05mm*2.5mm_5.84mm

G802M010352YEU

Board mount - Header Plug - Pin Header 1.27mm Pitch Vertical,SMT,2x5Pin,10μin Gold,LCP,3.05mm*2.5mm_5.84mm

G802M016315PD2EU

Pin Header 1.27mm Pitch,STR SMT,2x8Pin,G/F,NY6T,4.0mm*1.5mm_4.8mm,Color-Black,T&R W/CAP,W/Post

G802MA010011YEU

Board mount - Header Plug - Pin Header 1.27mm*1.27mm Pitch,Vertical SMT,2x5Pin,Gold Flash,NY6T,3.0mm*1.0mm_5.5mm,With Post

G802MA020011YEU

Pin Header 1.27mm *1.27mm Pitch,STR SMT,2x10Pin,G/F, NY6T,3.0mm*1.0mm_5.5mm,W/POST,T&R,W/CAP

G809A2008130DHR

Board mount - Header Receptacle - PCB Socket 1.27mm Pitch,Vertical,SMT,2x4Pin,Gold Flash,NY6T,W=3.1mm,2.3mm_4.4mm

G809A2016121D1EU

PCB Socket 1.27mm Pitch,STR SMT,2x8Pin,G/F,NY6T,W=3.1mm,2.5mm_4.6mm,Color-Black,T&R W/CAP,W/Post

G845B034311GEU

Board mount - Header Plug - Box Header 1.27mm Pitch*2.54mm Row Vertical Dip,2x17Pin,15μin Gold,NY6T,TAIL=3.0mm

G845B040131GEU

Board mount - Header Receptacle - Box Header 1.27mm Pitch*2.54mm Row,Right Angle DIP,2x20Pin,Gold Flash,NY6T,Tail=2.6mm,Color-Black,Tray

G845B040231GEU

Board mount - Header Plug - Box Header 1.27mm Pitch*2.54mm Row Vertical Dip,2x20Pin,10μin Gold,NY6T,TAIL=3.0mm

G845B050011GEU

Board mount - Header Receptacle - Box Header 1.27mm Pitch*2.54mm Row,Vertical DIP,2x25Pin,Gold Flash,NY6T,Tail=3.0mm,Color-Black,Tray

G845BM026210CEU

Board mount - Header Receptacle - Box Header 1.27mm Pitch*2.54mm Row Vertical SMT,2x13Pin,10μin Gold,NY6T,Color-Black,T&R With CAP

G845BM034210CEU

Board mount - Header Receptacle - Box Header 1.27mm Pitch*2.54mm Row Vertical SMT,2x17Pin,10μin Gold,NY6T,Color-Black,T&R With CAP

G845BM034210HEU

Board mount - Header Receptacle - Box Header 1.27mm Pitch*2.54mm Row Vertical SMT,2x17Pin,10μin Gold,NY6T,Color-Black,T&R With CAP,High-retention

G845BM040210CEU

Board mount - Header Plug - Box Header 1.27mm Pitch*2.54mm Row Vertical SMT,2x20Pin,10μin Gold,NY6T,With CAP

G845BM040210HEU

Board mount - Header Plug - Box Header 1.27mm Pitch*2.54mm Row Vertical SMT,2x20Pin,10μin Gold,NY6T,With CAP,High-retention

G8020081302YEU

Pin Header 1.27mm*1.27mm Pitch STR DIP, 2x4Pin, G/F, NY6T, 2.8mm*2.5mm*2.0mm, BAG

G802M008325YAEU

Pin Header 1.27mm*1.27mm Pitch Straight Surface Mount, 2x4Pin, 15μin Gold, HTN, 4.0mm*1.0mm_5.5mm, Color-Black, Tape and Reel With CAP
